Cylinder Heads BBC 320cc Assembled

Description

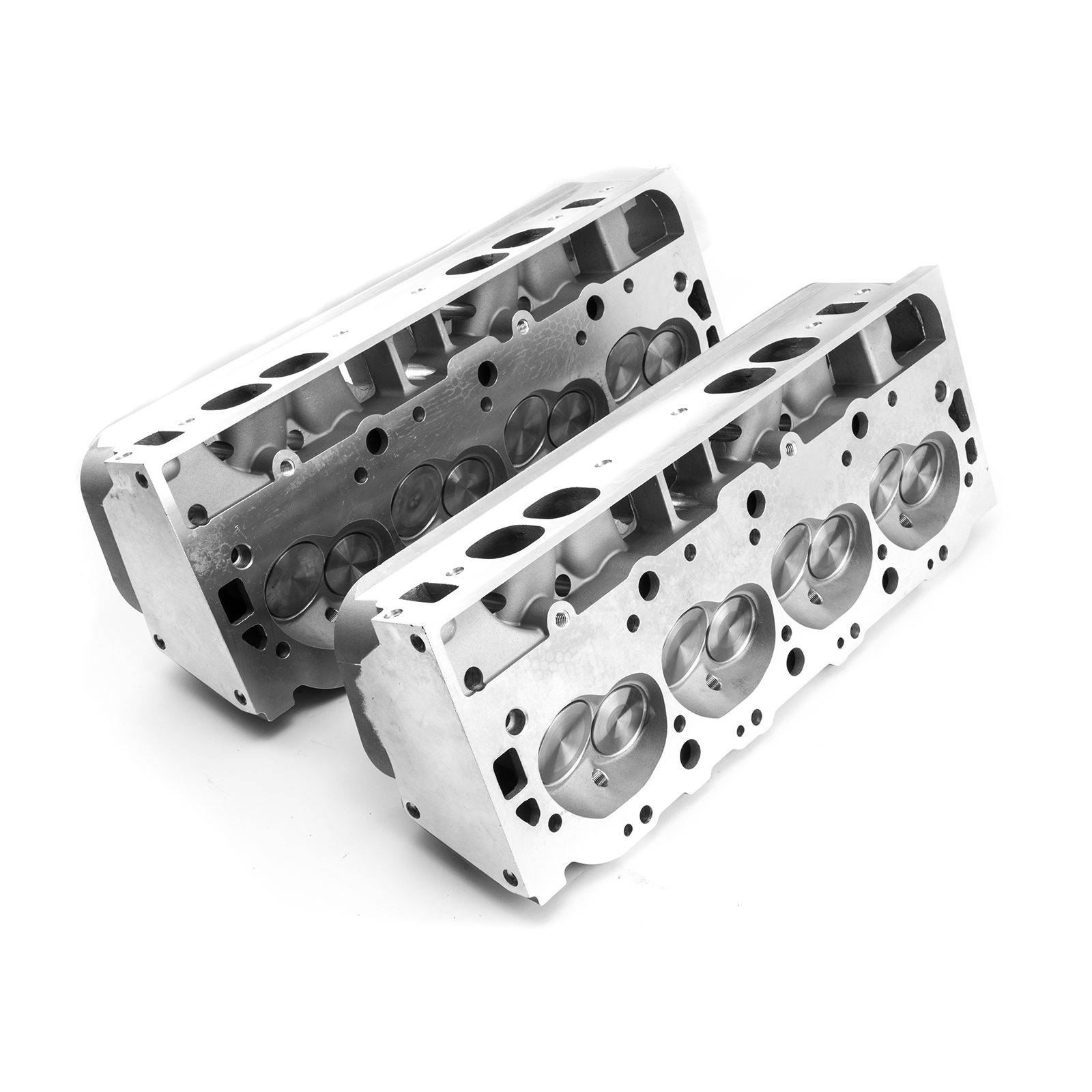

Blacklabel’s 320cc BB CHEVY, ASSEMBLED, Aluminum Cylinder Heads,

 Chevy Big Block Engines 396, 402, 427, 454, 502

***Assembled SET***

MFG. SPECS:

 Aircraft Grade 356A T-6 Aluminum Alloy,
119cc Combustion Chamber, Open Chambers , High Flow 320cc Intake Runners,
Fits All OEM Bolt Pattern Manifolds, Intake Bolt Standard OEM Length, 8 Bolt Exhaust Flange, Square Port Exhaust, Exhaust Port Raised 0.625″,
15/24 Degree Valve Angle Manganese Bronze Valve Guides,
3 Angle Cut Stellite Valve Seats,
Uses 14mm x 3/4” reach 5/8” hex gasket seat sparkplugs.

                                                               65 ft.lb Torque Specs,  .400″ thick deck can be milled down to 54cc. ,

Can be Used with Nitrous, Ultra High Compression, & Turbo/Superchargers,

Suggested Roller Cam Base of 1.130″,

 ASSEMBLED FEATURES INCLUDE;

4324 S/S Intake Valves- 2.250 + 0.250, OAL 5.494″ (11/32″ stem)

4317 S?S Exhaust Valves- 1.88 + 0.100″, OAL 5.522″ (11/32″ stem)

4340 Machined Valve Locks

4140 Steel Retainers 1.400 x 1.060 x 0.690

8005 Single Spring w/dampner,   springs are designed for big block motors that require a 1.5250 outer diameter spring. Springs are desigend for street/strip applications with cam combination with no more than .600 lift. Spring pressures and installed heights are as follows;
140lbs at 1.900, 165lbs at 1.850, 180lbs at 1.800, 350lbs at 1.300, 365lbs at 1.250, 380lbs at 1.200

Coil bind at 1.160

Installed spring height should be checked with your camshaft specs of your application.

Uses Felpro # 1275 Rectangular Port Intake Gasket
Felpro 1017 Head Gasket Set

Flow Test Data @28″ CFM Water Intake (according to manufacturer)

• These heads fit years from 1955 to 2009
  the difference is gen4-5-6 blocks

  Due to the wide combustion chamber needed to fit around the large 2.250/ 1.880″ valves, we recommend our PCE348.1004 MLS head gaskets.
  To install our BBC heads on Mark V blocks, you will need to use our SM5233L and SM5233R Elite Series MLS head gaskets. Alternatively, you can use Victor Reinz # 4918(R) & #4923(L) head gaskets on Mark V blocks with our heads.
